High-Performance Series

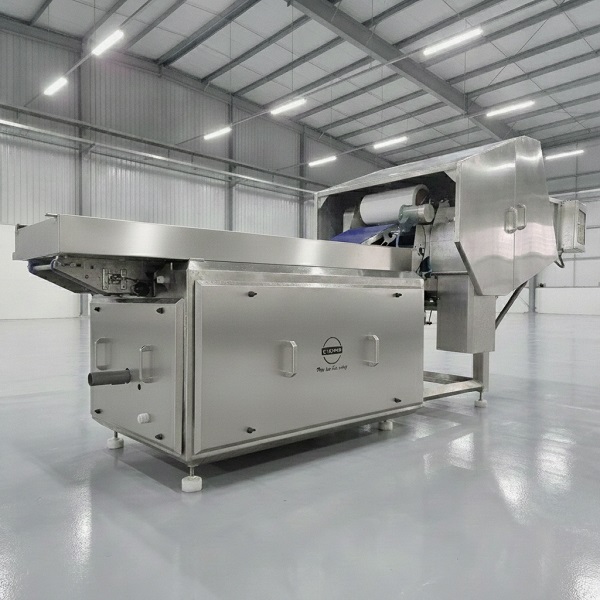

The Deep Chilling Drum Skinning Machine is commonly used in pangasius fillet processing plants. Its operating principle is based on a deep-chilled rotating drum maintained at an extremely low temperature. When the fish fillet passes over the drum, the skin rapidly adheres to the chilled surface, while a precision scraper blade separates the fillet meat from the skin. This process ensures high yield, excellent product quality, and minimal meat loss.
| PARAMETER | SPECIFICATION |
|---|---|
| Model | SK-4000K-DE |
| Dimension (mm) | L3.800x W1.300 x H1.800 |
| Capacity |
|
| Feature | Electric blade adjustment
Remove red meat and fish skin |
| Refrigeration compressor | Bitzer |
| Motor | Motor inox, IP67 380V / 3 phase |
| Material | Inox 304 |
✅ Deep-freezing drum technology with a pneumatic cooling system maintains a stable drum surface temperature, enhancing skin adhesion and ensuring highly efficient deep-skinning performance.
✅ Precise skinning depth control maximizes meat recovery yield while minimizing raw material loss during processing.
✅ PLC-based automatic control system ensures stable operation, accurate parameter management, and reduced dependence on manual adjustments.
✅ User-friendly HMI interface allows operators to easily set, monitor, and adjust machine parameters according to different product specifications.
✅ Automatic monitoring and fault alarm functions improve operational safety, reduce downtime, and lower maintenance costsl.
✅ Consistent cooling performance throughout production, ensuring uniform skinning quality across all batches.
✅ High skin removal efficiency, minimizing residual skin and reducing the risk of meat damage, thereby increasing the commercial value of fish fillets.
✅ Energy-efficient operation through intelligent control technology, optimizing the performance of the cooling system and drive mechanisms.
✅ High production capacity with continuous 24/7 operation, meeting the demands of large-scale seafood processing plants.
✅ Repeatable and consistent processing results, ensuring uniform product quality and compliance with international export standards.
✅ Reduced reliance on operator skill, increasing automation levels and improving overall production management efficiency.
✅ Food-grade stainless steel construction, providing excellent hygiene, corrosion resistance, easy cleaning, and long service life.
